The latest supported version of Hyperledger Fabric is v1.2

Installing Fabric dependencies

  • Install using the repository (for the supported Fabric v1.1)
    • run npm install grpc@1.10.1 fabric-ca-client@1.1.0 fabric-client@1.1.0 in the root folder
    • If you want to test Fabric with old version such as v1.0.0, you should install compatible client SDK,
      e.g. npm install grpc@1.10.1 fabric-ca-client@1.0.0 fabric-client@1.0.0

Fabric Configuration file

The configuration file must contain a ‘fabric’ property, which defines the Fabric configuration, and an ‘info’ property, which provides supplementary information for the test case.

Fabric

The ‘fabric’ property has six main properties that are used to interact with the SUT.:

  • cryptodir: Optionally defines a relative path of the crypto directory which contains all cryptographic materials, all paths defined in the configuration are relative paths to the fabric root directory. The crypto directory structure must be identical with the output of fabric’s cryptogen tool. The sub-directories names must match organizations’ names defined in network element. The certificates and private keys in this directory are used by Caliper to act as the administrator or the member of corresponding organization to interact with fabric network, e.g to create channel, join channel, install chaincode, invoke chaincode, etc. If not present, each organization’s cryptographic materials must be defined directly in network property.
{"cryptodir": "network/fabric/simplenetwork/crypto-config"}

  • network: defines the information of orderers and peers of the SUT. For simplicity’s sake, only one orderer can be defined now, that causes all proposals being sent to the same orderer, which may hurt ordering performance. That should be fixed in future. The attribute name of organizations and peers must start with ‘org’ and ‘peer’.

    Optionally an user attribute can be set with an organization to specify the key and certification that can be used by Caliper to interact with the SUT as a member of corresponding organization. If not present, Caliper will try to find them in cryptodir.

    The domain attribute for the orderer and organizations corresponds to the Domain set in the crypto-config.yaml file. It defaults to example.com, the domain used by (most of) the networks in this repository.

{
  "network": {
    "orderer": {
      "url": "grpcs://localhost:7050",
      "mspid": "OrdererMSP",
      "domain": "example.com",
      "user": {
        "key": "network/fabric/simplenetwork/crypto-config/ordererOrganizations/example.com/users/Admin@example.com/msp/keystore/be595291403ff68280a724d7e868521815ad9e2fc8c5486f6d7ce6b62d6357cd_sk",
        "cert": "network/fabric/simplenetwork/crypto-config/ordererOrganizations/example.com/users/Admin@example.com/msp/signcerts/Admin@example.com-cert.pem"
      },
      "server-hostname": "orderer.example.com",
      "tls_cacerts": "network/fabric/simplenetwork/crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/ca.crt"
    },
    "org1": {
      "name": "peerOrg1",
      "mspid": "Org1MSP",
      "domain": "example.com",
      "ca": {
        "url": "https://localhost:7054",
        "name": "ca-org1"
      },
      "peer1": {
        "requests": "grpcs://localhost:7051",
        "events": "grpcs://localhost:7053",
        "server-hostname": "peer0.org1.example.com",
        "tls_cacerts": "network/fabric/simplenetwork/crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt"
      },
      "peer2": {
        "requests": "grpcs://localhost:7057",
        "events": "grpcs://localhost:7059",
        "server-hostname": "peer1.org1.example.com",
        "tls_cacerts": "network/fabric/simplenetwork/crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/ca.crt"
      }
    }
  }
}
  • channel: defines one or more channels used for the test. The ‘deployed’ property is used to define whether the channel has already been deployed (false as default when the property is missing). If the value is false, the defined channels can be created automatically by calling Blockchain.init() function. The binary tx file created by fabric configtxgen tool is used to provide details of the channel.
    {
"channel": [
  {
    "name": "mychannel",
    "deployed": false,
    "config": "network/fabric/simplenetwork/mychannel.tx",
    "organizations": ["org1", "org2"]
  }
]
}

  • chaincodes: defines one or more chaincodes, those chaincodes can be installed and instantiated on all peers of the specific channel by calling Blockchain.installSmartContract() function.

    Optionally an init attribute can also be set to an array of string values. This array will be passed as the argument to the chaincode’s Init method. The init attribute defaults to an empty array.

    The language property denotes the chaincode platform (i.e., the language it’s written in). The currently supported values (by Caliper and the SDK) are: golang (default) and node.

    Golang chaincode: The path attribute by default is relative to the caliper/src folder, since $GOPATH is temporarily set to the Caliper root folder during benchmark execution. If you would like to install a Golang chaincode from a previously set $GOPATH, then set the OVERWRITE_GOPATH environment variable to FALSE before running the benchmark:

    GOPATH=~/mygopath OVERWRITE_GOPATH=FALSE node main.js

    Node.js chaincode: The path attribute can be either relative to the Caliper root folder or an absolute path. Node.js chaincodes are supported starting from version 1.1.0 of Fabric and the Node SDK, so make sure that the Docker image and the SDK versions are appropriate.

    The metadataPath attribute (for both languages) denotes any extra metadata that should be deployed with the chaincode, e.g., the CouchDB indexes to build. The metadataPath attribute can be either relative to the Caliper root folder or an absolute path. For the necessary folder structure, please refer to the SDK documentation.

{
  "chaincodes": [
    {
      "id": "drm",
      "path": "contract/fabric/drm",
      "version": "v0",
      "channel": "mychannel",
      "init": ["init_arg1", "init_arg2"],
      "language": "golang",
      "metadataPath": "src/contract/fabric/drm/metadata"
    }
  ]
}
  • endorsement-policy: defines the endorsement policy for all the chaincodes. Currently, only one policy can be defined and the policy is applied to all chaincodes.
    {
"endorsement-policy": {
  "identities": [
    {
      "role": {
        "name": "member",
        "mspId": "Org1MSP"
      }
    },
    {
      "role": {
        "name": "member",
        "mspId": "Org2MSP"
      }
    }
  ],
  "policy": { "2-of": [{"signed-by": 0}, {"signed-by": 1}]}
}
}
  • context: defines a set of context to tell Caliper which fabric channle will be interacted with later. The context name(key) is the name of the test round defined by test.rounds[x].label in the test configuration file if the default test framework is used. In this way, developers could use different fabric environment for different test rounds. The information is used by getContext() function to properly create a fabric client for later use, and register block events with appropriate peers.
    {
"context": {
  "publish": "mychannel",
  "query": "mychannel"
}
}

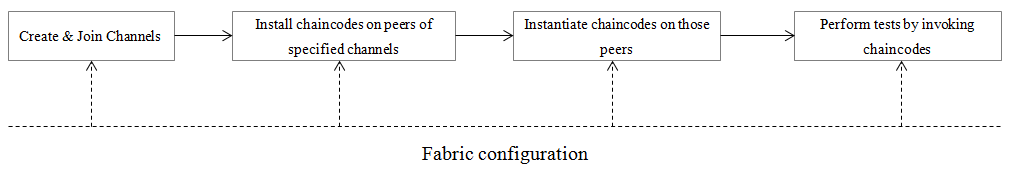

The diagram below shows the typical fabric test flow. fabric-flow

Info Property

The configuration file may contain an ‘info’ property which is a common property for all blockchain configuration files. Users can use this property to disclose any information about the system under test (SUT). Caliper’s report generator will read this property and add the information into the generated testing report. This property may contain any user defined key/value pairs. A special key named ‘details’, is reserved particularly to contain detailed information about the SUT.

{
  "info": {
    "Version": "1.0.0",
    "Size": "4 Peers",
    "Orderer": "Solo",
    "Distribution": "Single Host",
    "details": "not provided"
  }
}

TODO List

  • network: allow to define multiple orderers and implement load balancing for ordering proposals.
  • channel: allow to define row information of the channel directly as alternative option, instead of the tx file.
  • endorsement-policy: allow to define multiple policies and relation between policy and chaincode.
